1200:1 Bar Type LCD Display 300 Cd/M2 IPS LCD Screen Transmissive

Name: 12001 Bar Type LCD Display 300 CdM2 IPS LCD Screen Transmissive
Brand: AISON
Price: 1 USD

1200:1 Bar Type LCD Display 300 Cd/M2 IPS LCD Screen Transmissive Manufactures

Model Number : Z046HD01

Brand Name : AISON

Certification : ISO9001 / ISO14000/ROHS

Place of Origin : Guangdong,China

MOQ : 1

Price : Negotiable based on quantity

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 200k/month

Packaging Details : Carton/Blister

Name : Bar Type LCD Display

Size : 4.6 inch

Brightness : 300 Cd/M2

Contrast ratio : 1200:1

Interface : 3SPI+18BIT RGB

Storage temperature : -30 to 80°C

Contact Now

Letterbox LCD 4.6 inch bar LCD display 320*960 for smart home, IoT

1. General Specifications

Z046HD01 is a diagonal 4.6" color active LCD module with LED backlight with RGB interface. This module is a transmissive type display operating in the normally white mode. It supports 320*960 resolutions and can display up to 16.7M colors (8-bit). Each pixel is divided into Red, Green and Blue sub-pixels which are arranged in vertical stripe.

Item	Contents
PN	Z046HD01
Size	4.6 inch
Outline Size	41.57118.82.5 mm
Active Area	36.768 x 110.304 mm
Resolution	320*960 Pixels
Aspect Ratio	1:3
Viewing direction	IPS, All
Brightness	300 cd/m²
Contrast ratio	1200:1
Interface	3SPI+18BIT RGB
Operation temperature	-20 to 70°C
Storage temperature	-30 to 80°C

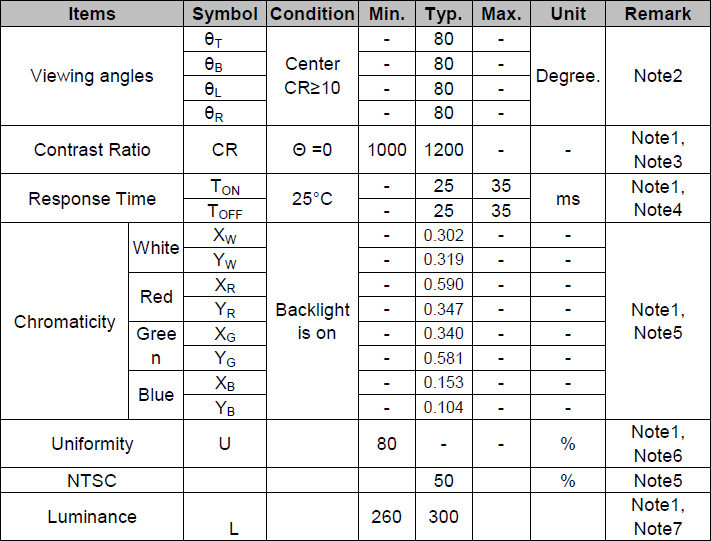

2. Optical Specifications

1200:1 Bar Type LCD Display 300 Cd/M2 IPS LCD Screen Transmissive

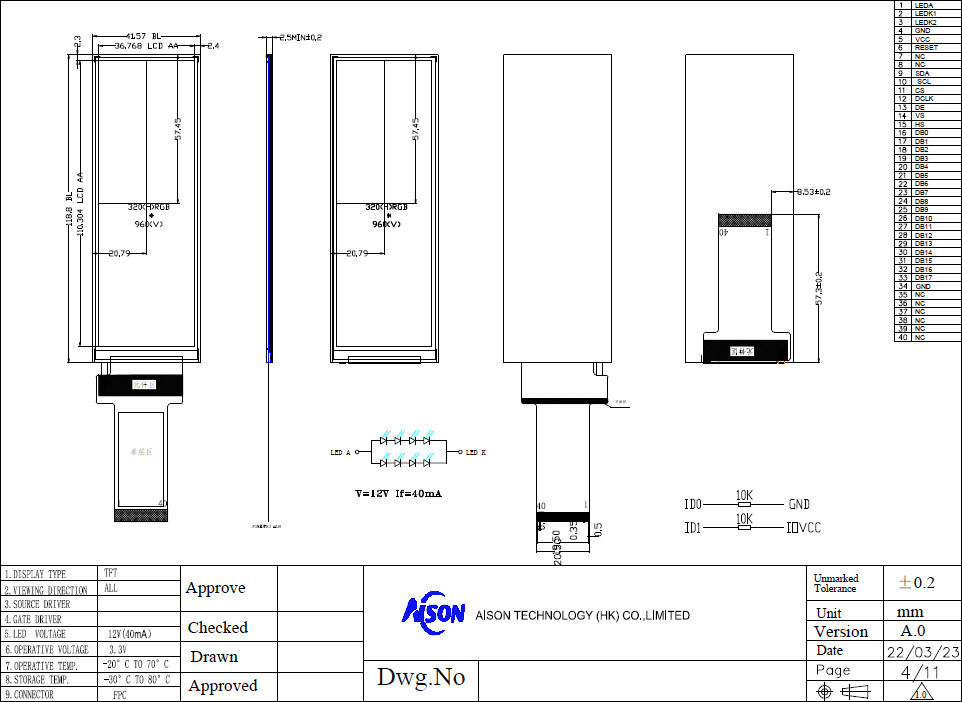

3. Drawing picture

4. Application

Consumer electronics/automotive/telecoms and data transfer/medical instruments/security management/signs and display/point of sale, EPOS/energy controls/amusement machines/white goods/ Home appliance
