5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2

Brand Name : AISON

Model Number : Z050WV21

Certification : ISO9001 / ISO14000/ROHS

Place of Origin : Guangdong,China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 200k/month

Delivery Time : 7 working days

Packaging Details : Blister Package/Carton

Name : 5 inch LVDS TFT Module Display

Resolution : 800x480

Outline dimension : 120.7*75.8*2.9mm

Active area : 108 x 64.80 mm

Interface : LVDS

Brightness : 500cd/m2

Display mode : TFT, Normally Black, Transmissive

Viewing Direction : ALL/IPS

Operating temperatures : -30 to 80 ℃

Storage temperatures : -35 to 85 ℃

Contact Now

5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2

Display General Description
Z050WV21 is a 5 inch IPS TFT LCD panel display featuring IPS panel technology and a resolution of 800 x 480 pixels. The TFT-LCD module supports a LVDS interface. It boasts a brightness of 500 nits (typical) and a high contrast ratio of 1000:1 (typical). Additionally, it offers a wide operating temperature range from -30°C to +80°C, with a storage temperature range of -35°C to +85°C.
This 5” IPS TFT has a wider viewing angle than TN TFT, the view angle is Left:85 / Right:85 / Up:85 / Down:85 degree (typical value). The supply voltage of Z050WV21 model is from 3.1 to 3.6V, aspect ratio 5:3, normally black, transmissive LCD type, Anti-glare surface glass.

General Data

Model Name 5 Inch IPS TFT LCD Display
Resolution 800x480
Model Size (W*H*T)
120.7*75.8*2.9 mm
Display Area (W*H)
108 x 64.80 mm
Interface LVDS
Display Mode Normally Black,Transmissive
Viewing Angels 85/85/85/85
Brightness 500 cd/m2
Pin number 40
Contrast Ratio
 1000:1
BACKLIGHT TYPE 12 WHITE LED
Operating temperatures -30 to 80 ℃
Storage temperatures -35 to 85 ℃

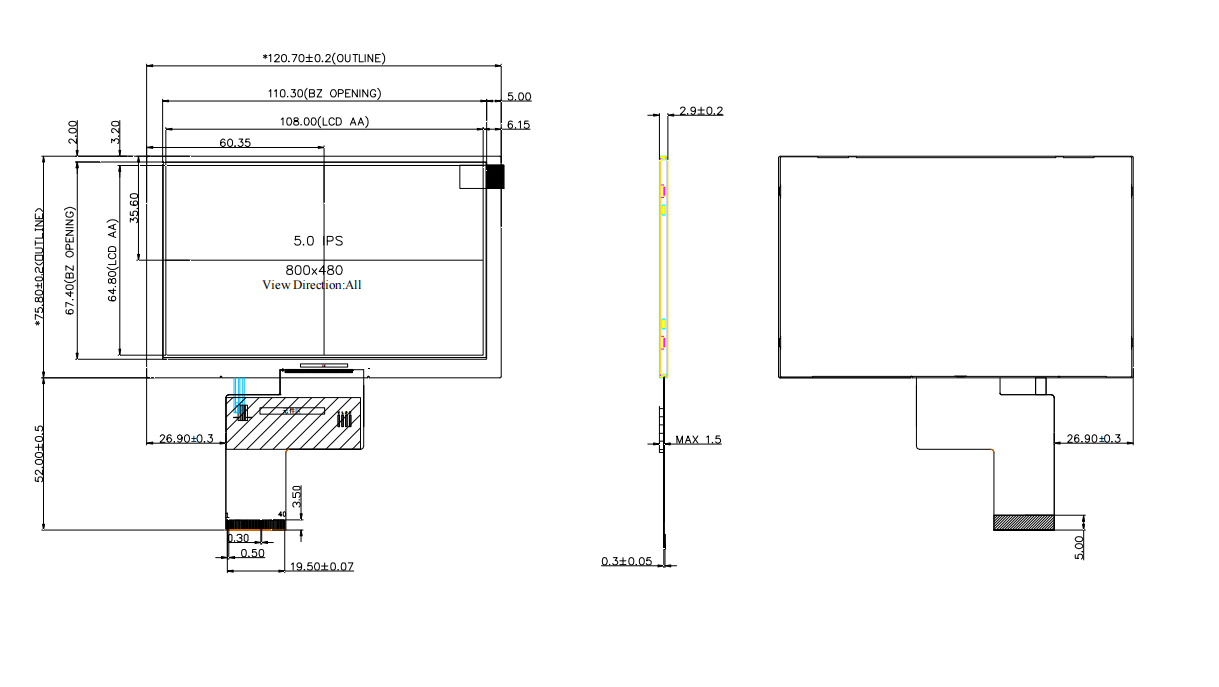

Drawing

5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2

Product Details

5'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M25'' 800x480 TFT LCD Screen Module 5 Inch IPS LVDS TFT Display 500 Cd/M2

TFT Applications

The 5 inch IPS LVDSTFT Displays are widely used for Industrial, Smart home,Medical, Automotive ,Intelligent and other applications.
