Brand Name : AISON
Model Number : Z035Q20
Certification : ISO9001 / ISO14000/ROHS
Place of Origin : Guangdong,China
MOQ : 1
Price : Negotiable
Payment Terms : T/T, Western Union, MoneyGram,Paypal
Supply Ability : 200k/month
Delivery Time : 7 working days
Packaging Details : Carton/Blister
Name : 3.5 Inch IPS TFT LCD Display
Resolution : 320x240
Outline dimension : 76.90*63.9*3.26mm
Active area : 70.08 x 52.56mm
Interface : 24-bit RGB
Viewing angle : 80/80/80/80
Brightness : 350cd/m2
Display mode : TFT,Normally Black
Operating temperatures : -20 to 70 degree
Storage temperatures : -30 to 80 degree
3.5-inch 320x240 IPS TFT LCD Display Module 3.5-inch TFT LCD Screen
General Data
Model Name | 3.5 inch IPS TFT Display |
Resolution | 320x240 |
Model Size (W*H*T) | 76.90*63.9*3.26mm |
Display Area (W*H) | 70.08 x 52.56mm |
Interface | RGB 24 bit |
Display Mode | Normally Black,Transmissive |
Viewing | IPS |
Brightness | 350 cd/m2 |
Pin number | 40 pin |
Driver IC | ST7272A |
Operating temperatures | -20 to 70 ℃ |
Storage temperatures | -30 to 80 ℃ |

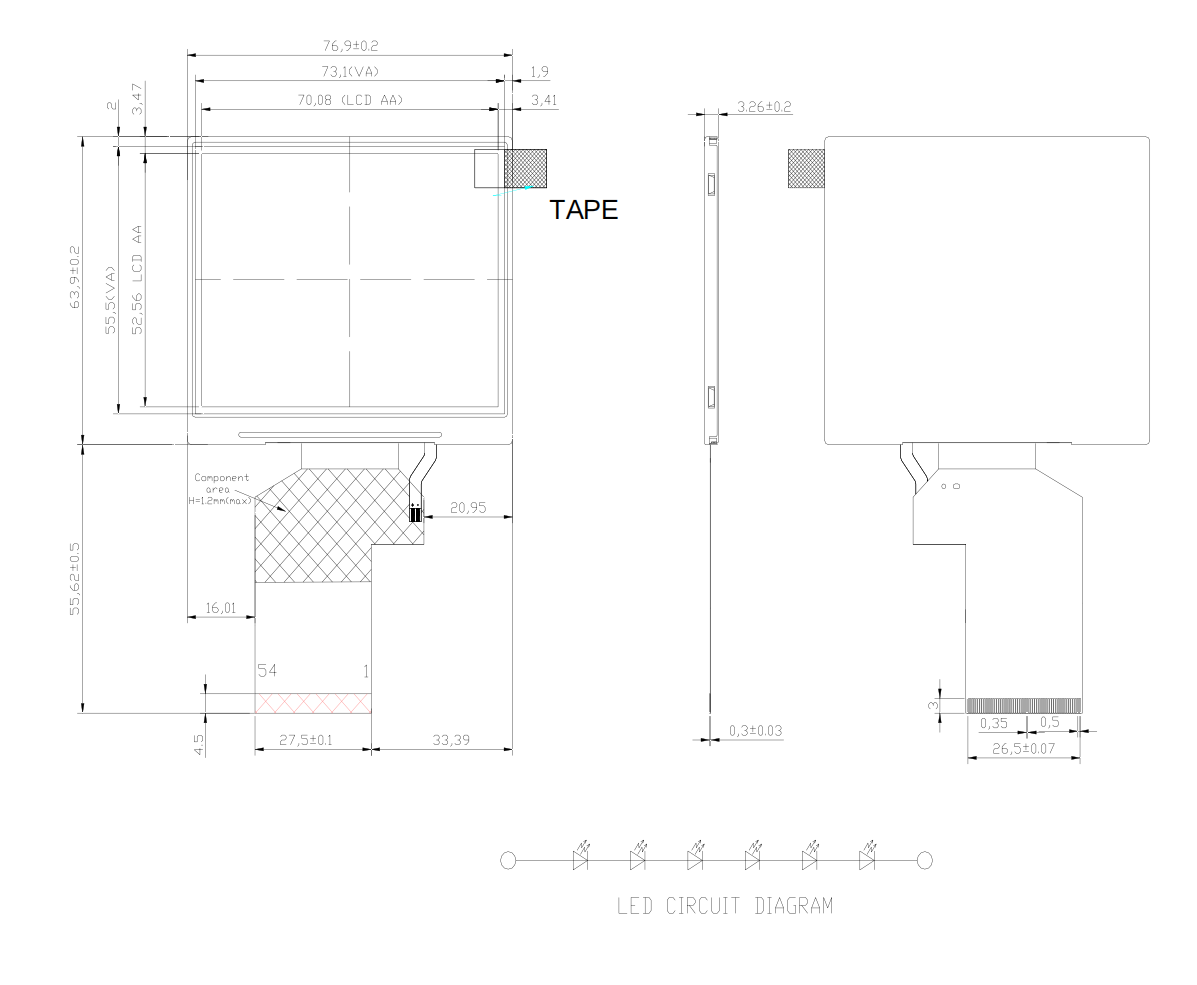

Drawing
Product Details
TFT Applications
This 3.5 inch IPS TFT Display can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports rgb interface.
![]() |
3.5 inch 320x240 IPS TFT LCD Display Module 3.5-inch TFT LCD Screen Images |
