The Z050YMM-J40-68P0C is a high-quality, circular 5.0-inch IPS TFT LCD module produced by BOE. It features a 1080x1080 RGB pixel resolution on a black background, delivering an exceptional visual experience. With a brightness of 300 cd/m², this module ensures clear visibility in various lighting conditions, providing optimal viewing comfort.
Equipped with the reliable HX8399C driver IC and supporting the MIPI 4 Lane interface, the Z050YMM-J40-68P0C offers consistent and dependable performance. It is designed to be compatible with a wide range of microcontrollers (MCUs), including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This extensive compatibility makes it ideal for various applications, such as embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices.
The module includes a Flexible Printed Circuit (FPC) with a Board-to-Board (B2B) connector, enabling a seamless and direct connection to the B2B connector on your PCB. This design simplifies integration and ensures a secure, reliable connection.
General Data
| Product Name | 5 inch Circular TFT Display with PCAP |
| Number of Pixel | 1080x1080 |
| Interface | MIPI |
| Luminance(cd/m2) | 300 cd/m2 |
| Active area | 127.01 (H) *127.01 (V)mm |
| LCM (W x H x D) | 148.1*148.1*3.205mm |
| LCD Driver IC | HX8399C |
| CTP Driver IC | GT911 |
| Viewing Angle | 80/80/80/80 |
| Contrast Ratio | 1300:1 |
| Operating temperatures | -20 to 60 degree |
| Storage temperatures | -30 to 75 degree |

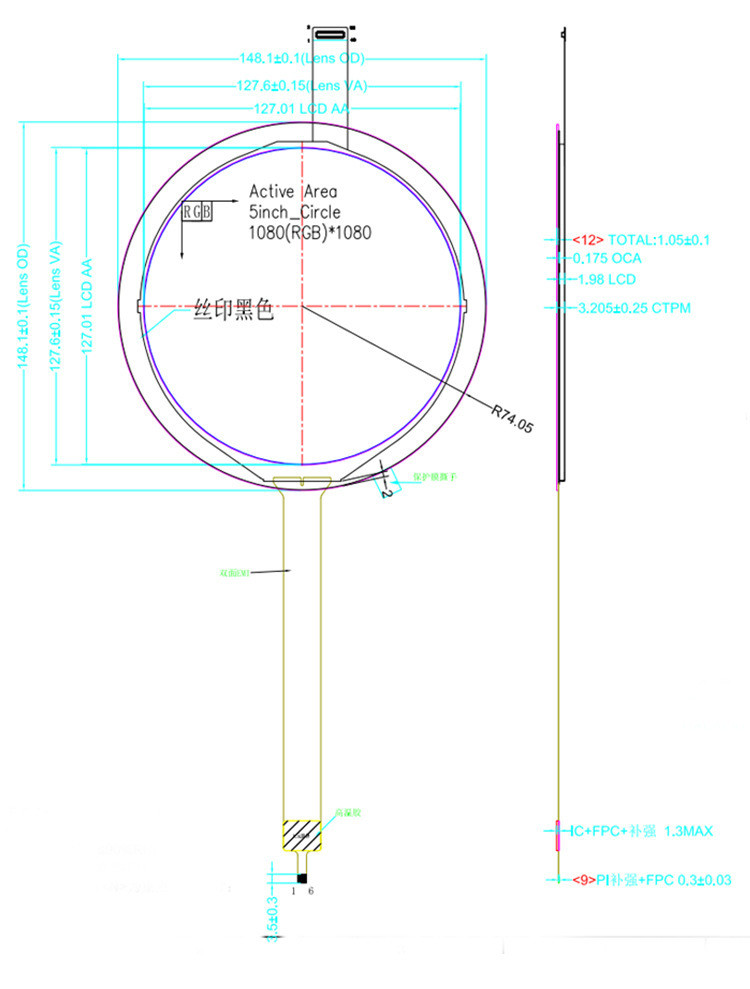

Drawing

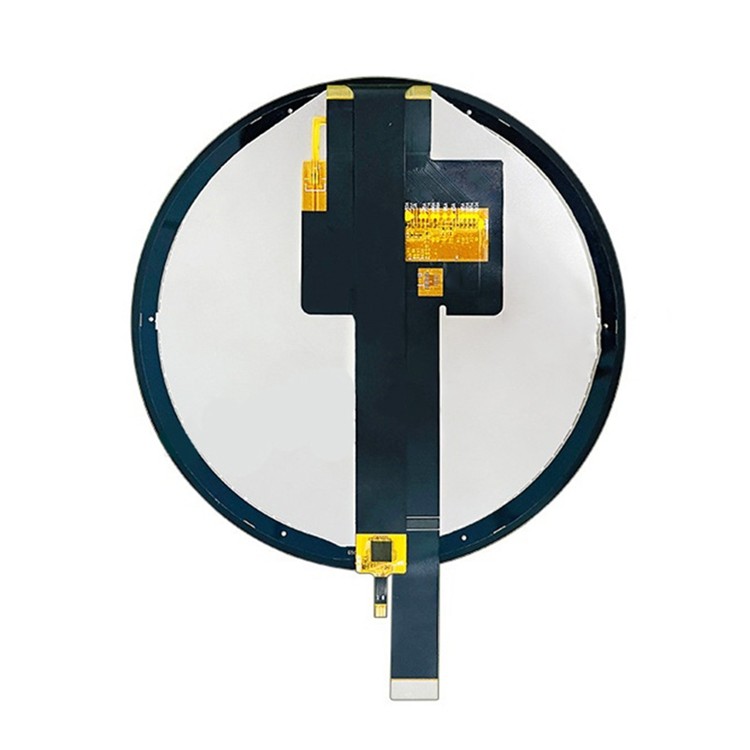

Product Details
Application:
Circular display, instrument, smart home, advertising machine
